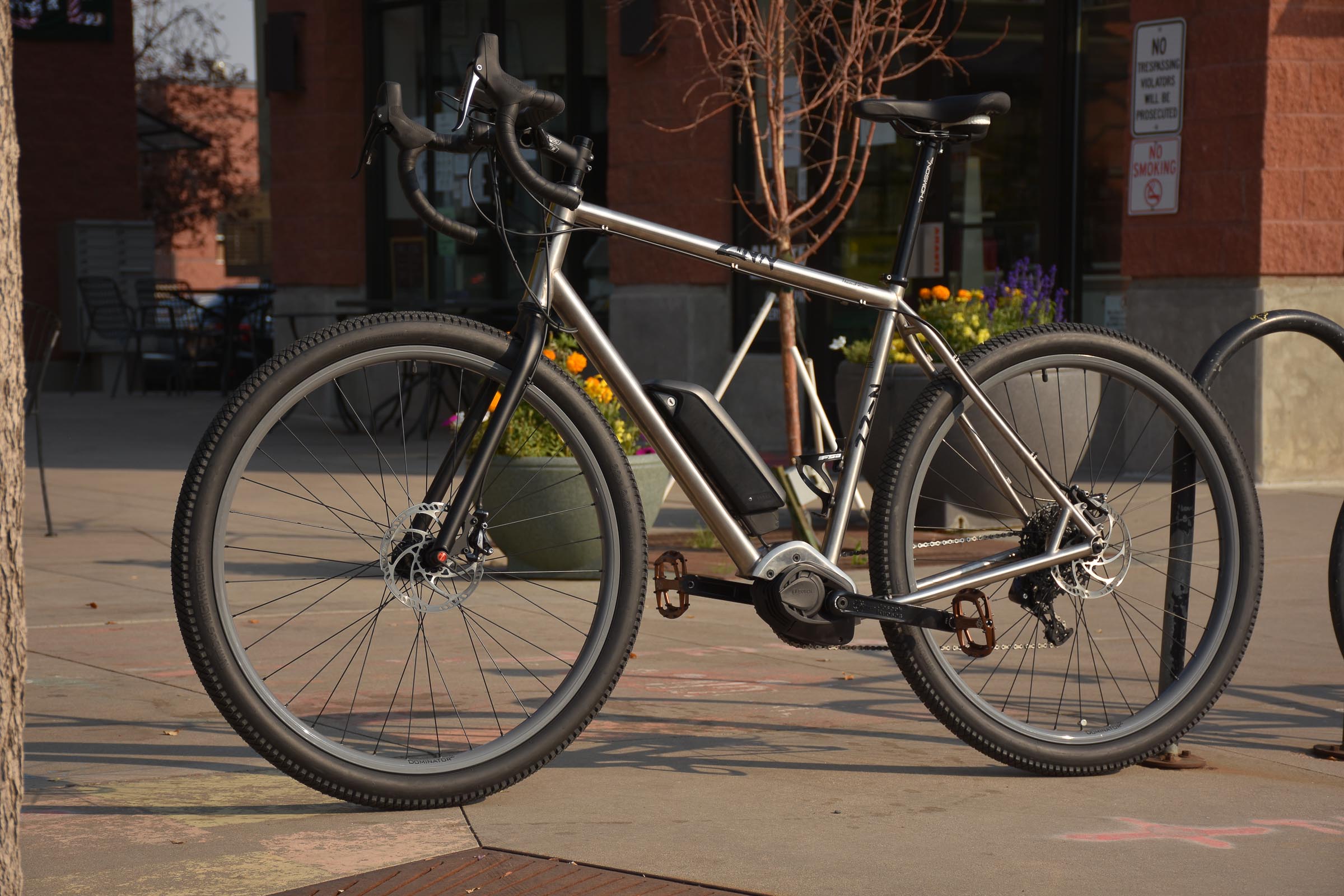

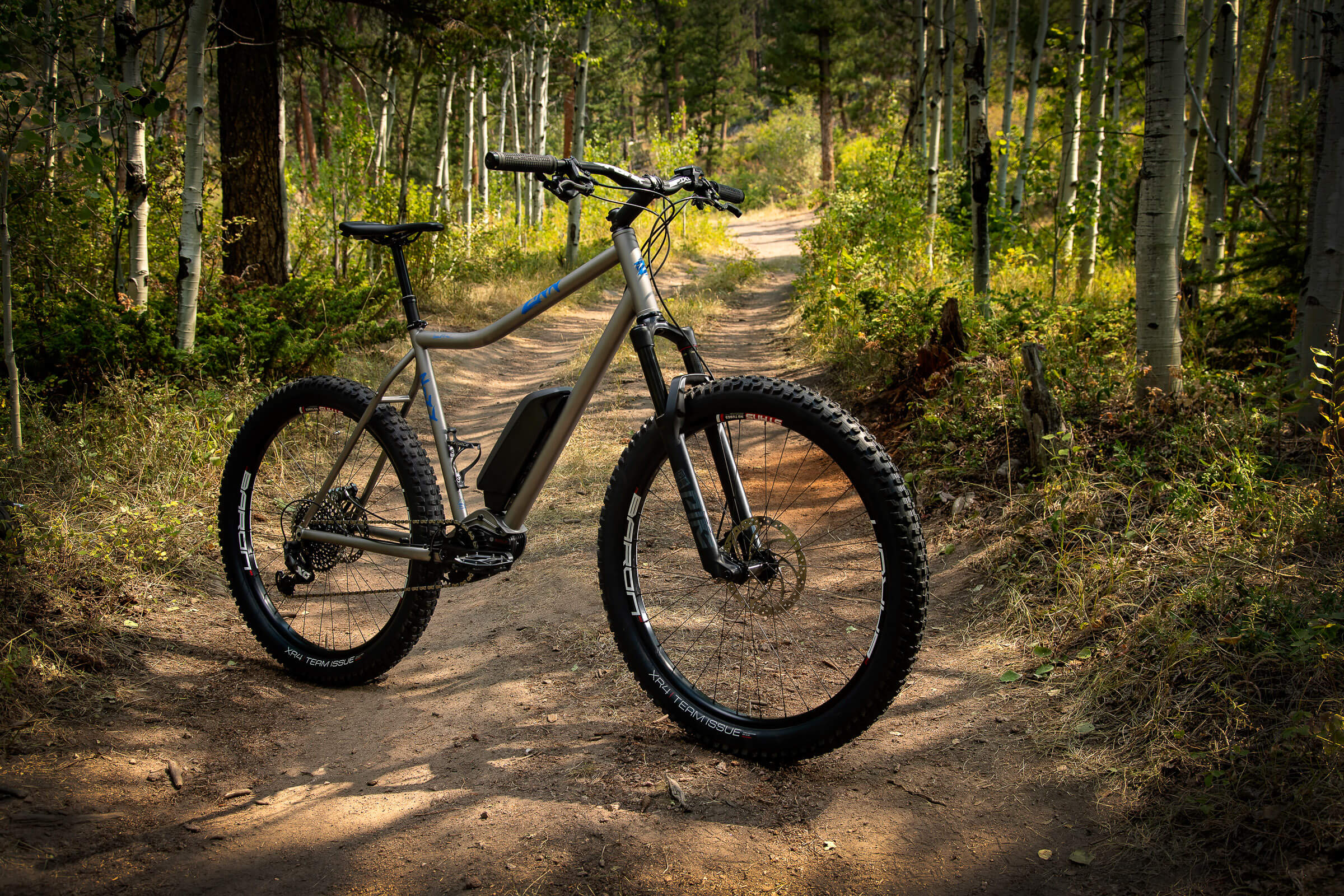

eZinn – Custom E-Bike
Titanium or Steel
Lennard has been riding a custom eZinn titanium e-bike since January of 2018 due to his heart arrhythmias that have been keeping him from doing the long mountain rides that he so loves. The e-bike has been a life changer for him. It has enabled him to, once again, ride with friends through the Colorado Rockies and commute around boulder without worrying about his heart. We believe that the e-bike revolution is here, and it’s going to help get more people on bikes who otherwise may not be able to ride anymore for health reasons or age. E-bikes are also an excellent way to lose weight since they allow you to do long rides at moderate effort, which burns more fat than carbohydrates. Lennard also wrote an article for Velonews magazine about the benefits of e-bikes. Here is a link to that article.
Frame and motor technology
|Titanium is half the weight of steel, so we can build Zinn Custom Bikes for big guys with larger diameter tubing with a frame still lighter than steel, or we can build an extremely lightweight and compliant bike for smaller people. We specify the exact tube dimensions for each customer so you get the best balance of strength, stiffness, durability, ride quality, and lightness. Larger diameter tubing provides greater strength and stiffness for greater power transfer, yet still with amazing compliance for a comfortable ride that doesn’t beat up your body over a long trek. Titanium has enough strength and fatigue resistance to avoid the need for extremely oversized tubes, providing a compliant ride on rough surfaces that smooths out and absorbs road buzz and small bumps. Steel frames, with their smaller tubes, can be almost as compliant, but aren’t quite as comfortable. Titanium can never corrode, unlike other metals. It can be painted or – unlike steel or aluminum – can be left without paint, powdercoat or plating, so you never need to worry about scratches. Internal cable routing is simple because the insides of the tubes are naturally impervious to rust and corrosion. Unlike aluminum, titanium has a fatigue limit, so as long as the tubing is not stressed beyond this limit or damaged, it will never fatigue. Titanium can also flex three times further than aluminum and twice as far as steel without permanent damage.|

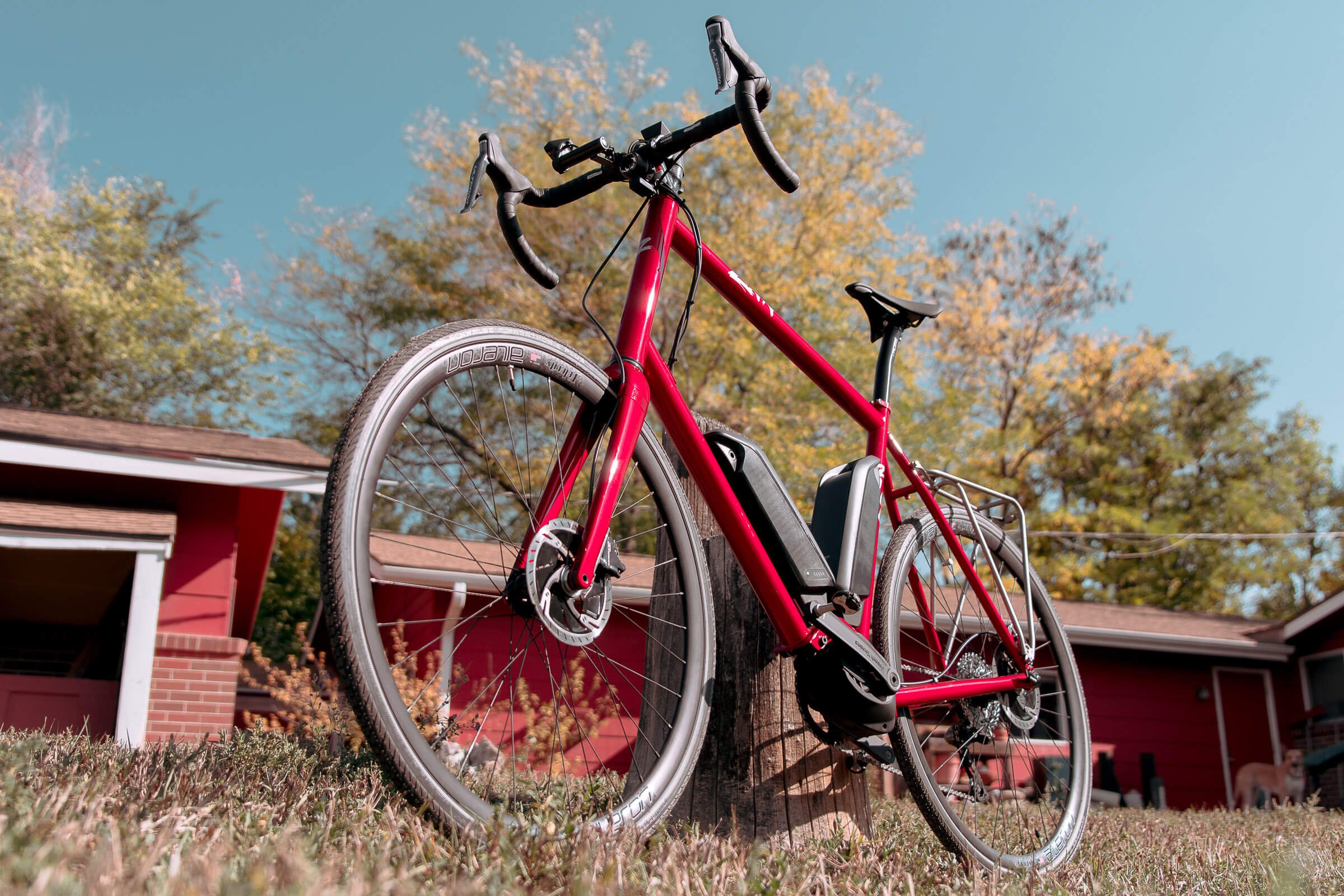

|Steel is stronger and denser than titanium or aluminum, and the steel tubing we use has an incredibly high ultimate tensile strength, giving it unprecedented fatigue life under high loads. Zinn steel frames also offer a rider of any size great performance and versatility at a great price. |
While steel frames tend to be heavier than titanium ones, our TIG welding method with a single strengthening gusset under the down tube offers great strength and longevity while still maintaining a reasonably light weight, and they will last many times longer than aluminum frames would. A Zinn steel frame will provide a lifetime of great, responsive riding on your custom bicycle.

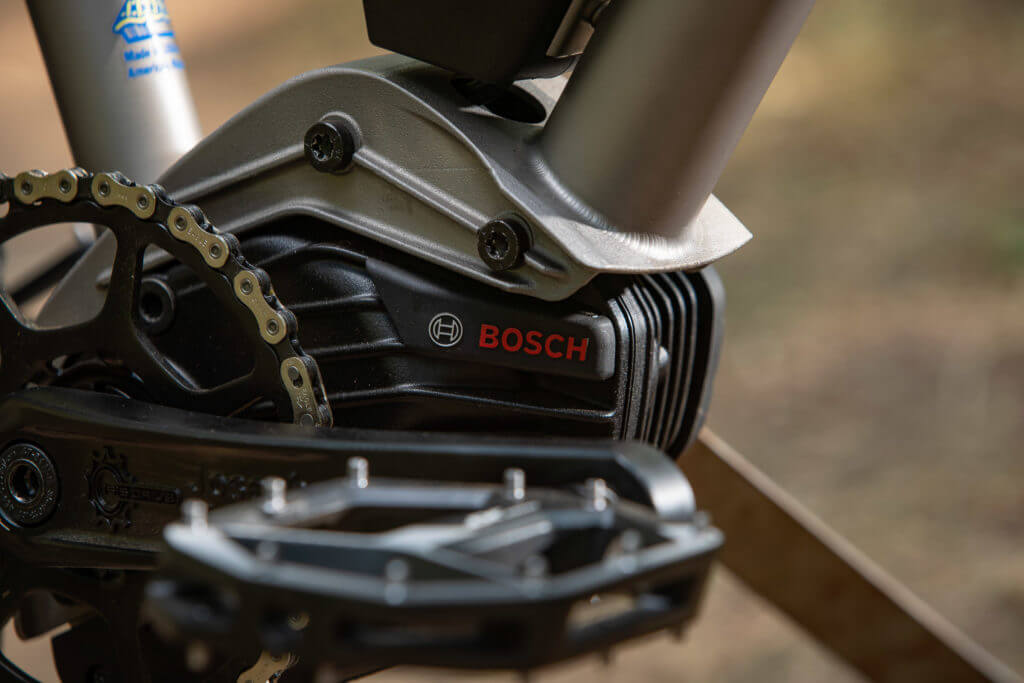

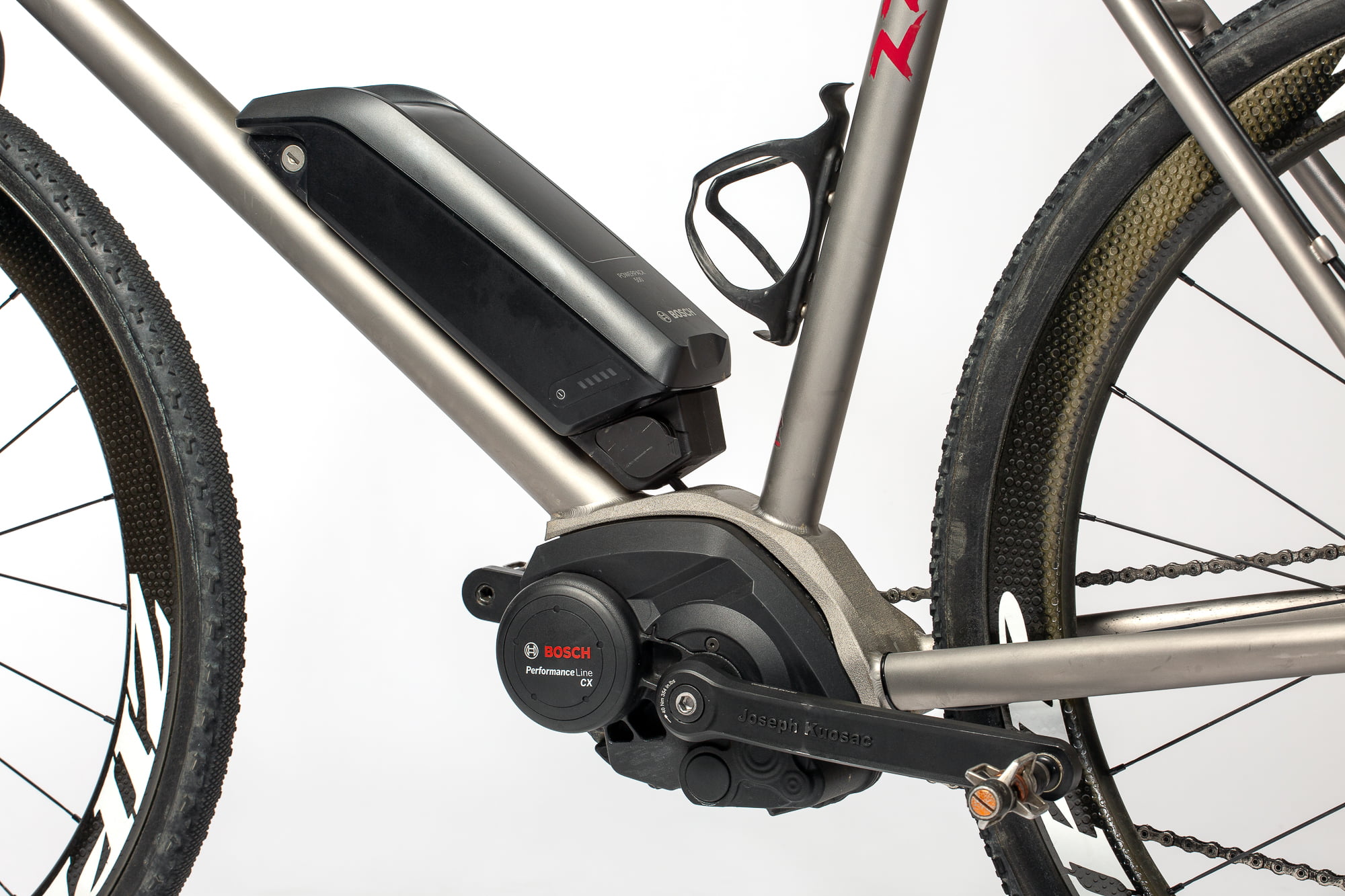

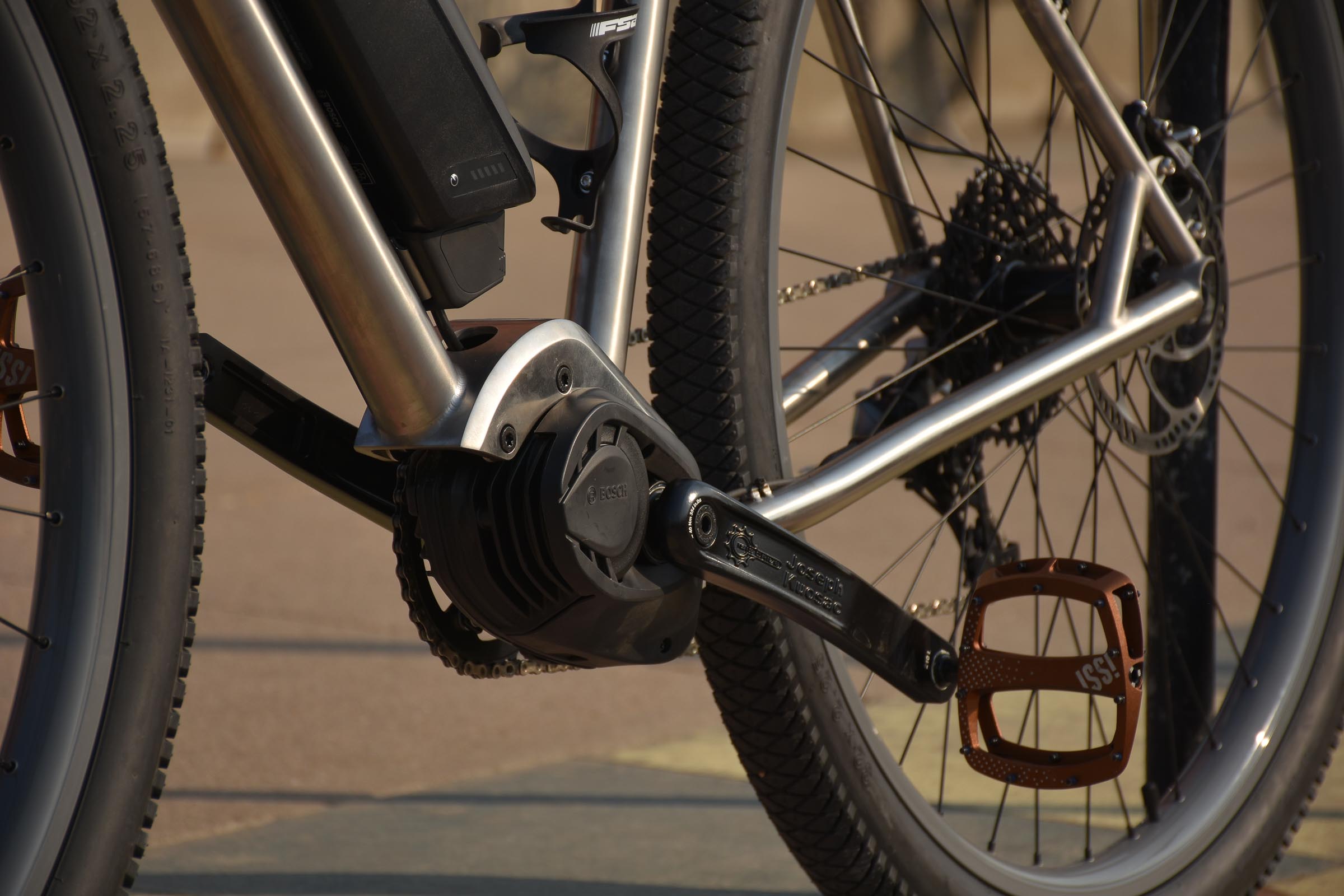

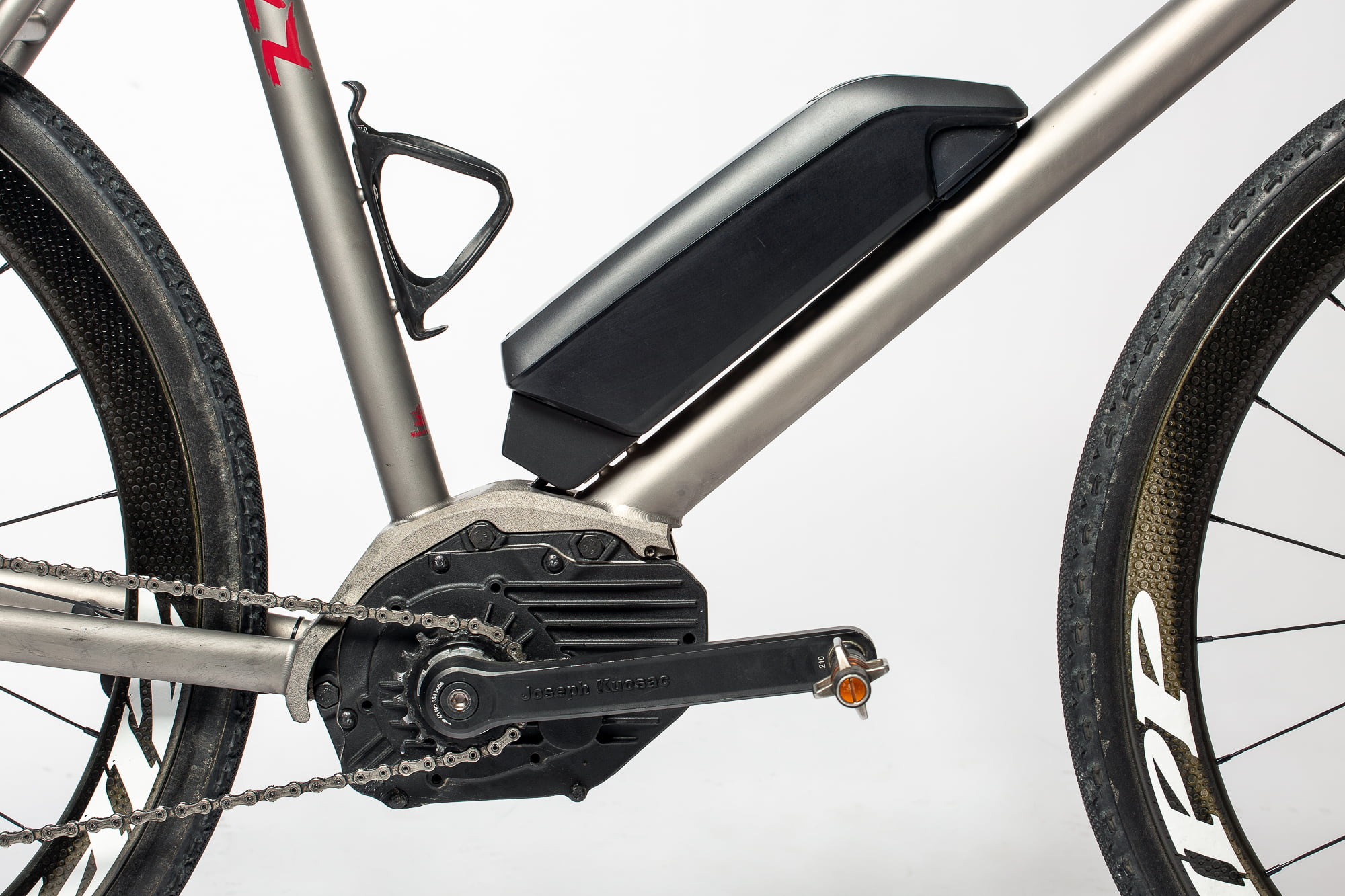

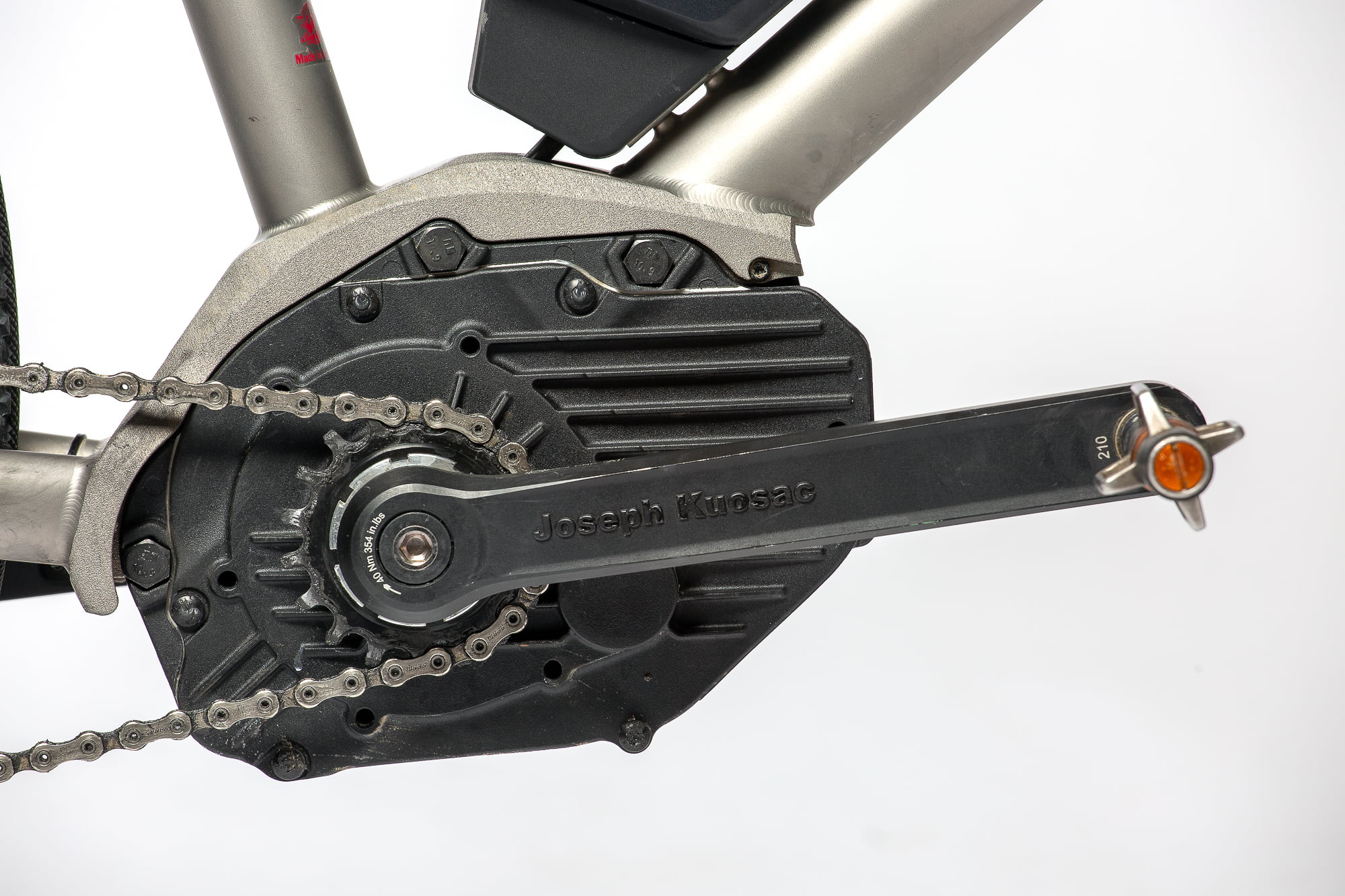

Bosch Performance line motor
Powerful starting: With a torque of up to 63 Nm, full support is available even at a low cadence, This ensures powerful riding behaviour, especially when starting.

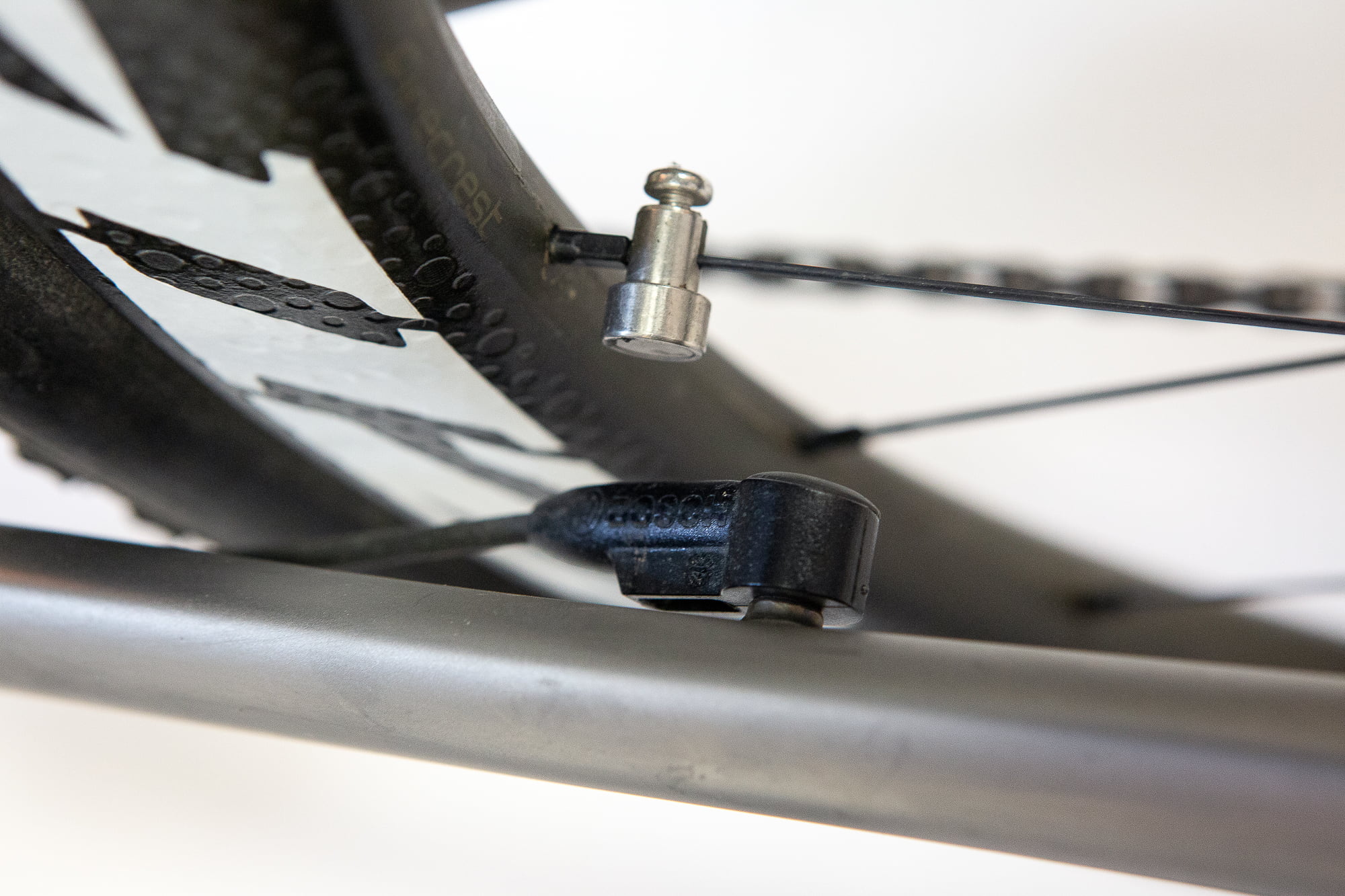

3-sensor concept: Three sensors measure the torque, speed and acceleration more than 1,000 times per second. ensuring perfect interaction between rider and eBike.
Durable: Precise motor control and fast processing of the sensor signals minimise noise and vibration. The safe chain run prevents chain derailment and incorrect loading and also reduces wear.
Outstanding support: The five riding modes available on the Performance Line offer sporty dynamic support.
Innovative gear shifting concepts: The eShift solutions from NuVinci, Rohloff and Shimano shift gear on the Performance Line electronically, while the automatic hub gear system from NuVinci or Rohloff provides support up to 28 mph.
S-Pedelec: The Performance Line Speed variant provides support up to 28 mph to allow cyclists to arrive at their destination even quicker.

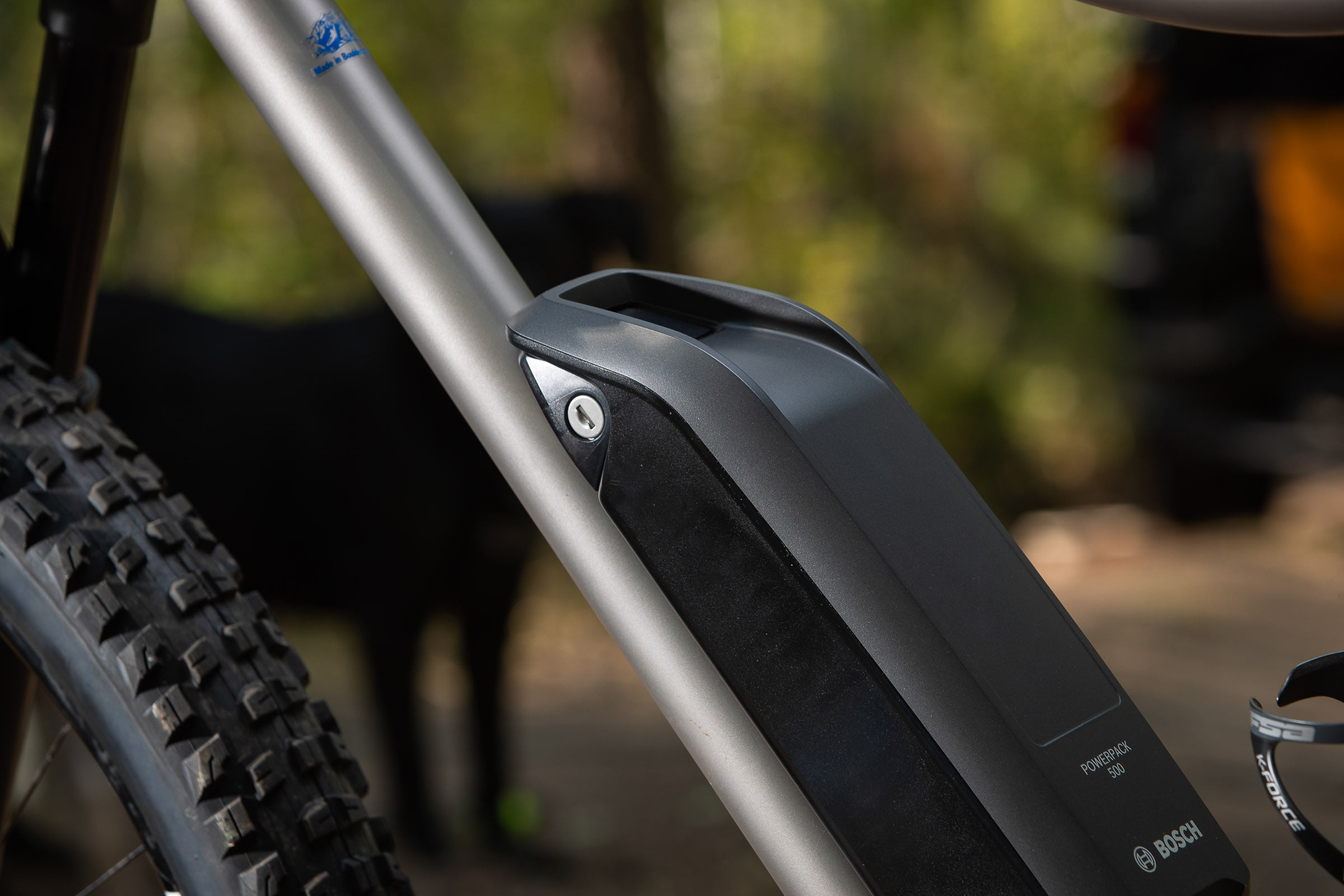

Bosch Powerpack 400 battery included
You can upgrade to the Powerpack 500 if you need more range. – $200
Whether visiting friends, taking a long mountain bike ride, commuting to work, or doing some errands with the eBike: PowerPack 400 delivers the energy required. The light lithium-ion battery is easy to install or remove or can simply be charged using the charging socket on the eBike. Its long life, ergonomic design and ease of handling means the PowerPack 400 provides reliable support that is strong on performance. The PowerPack 400 is included as a frame or rack battery for all product lines.

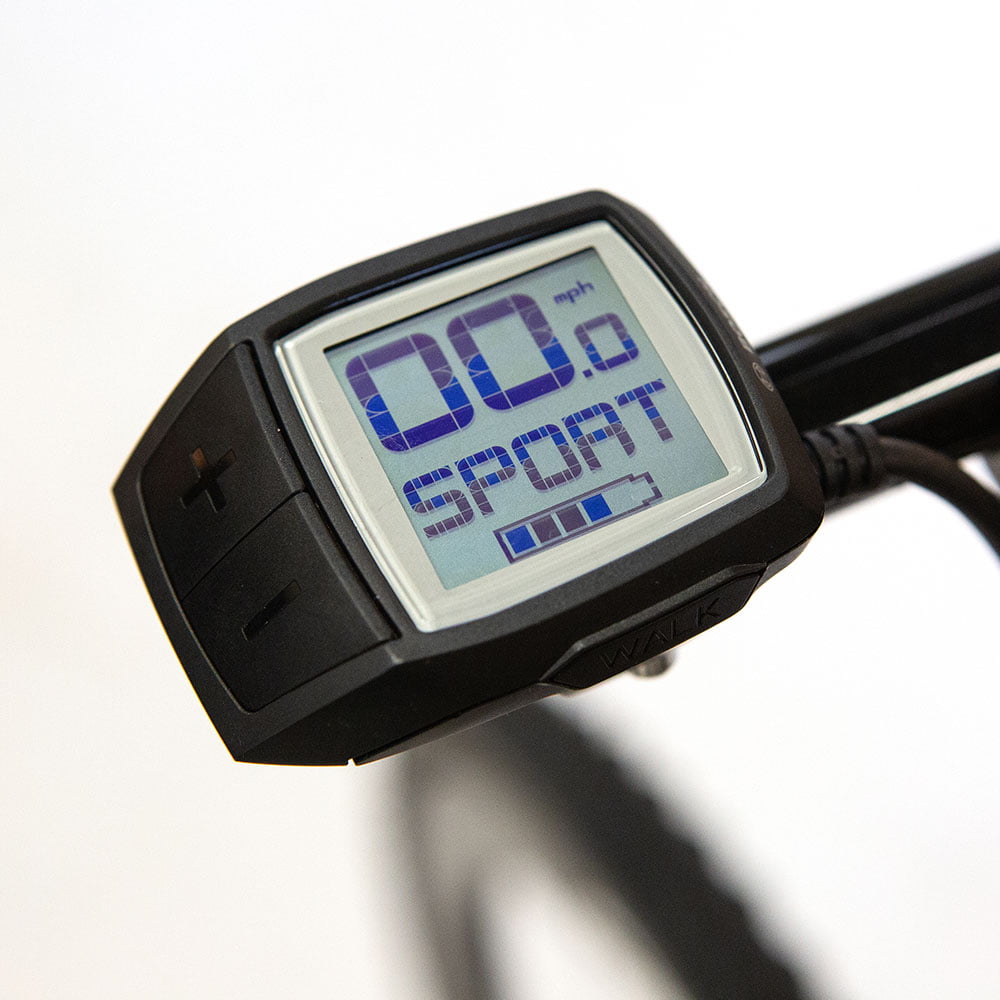

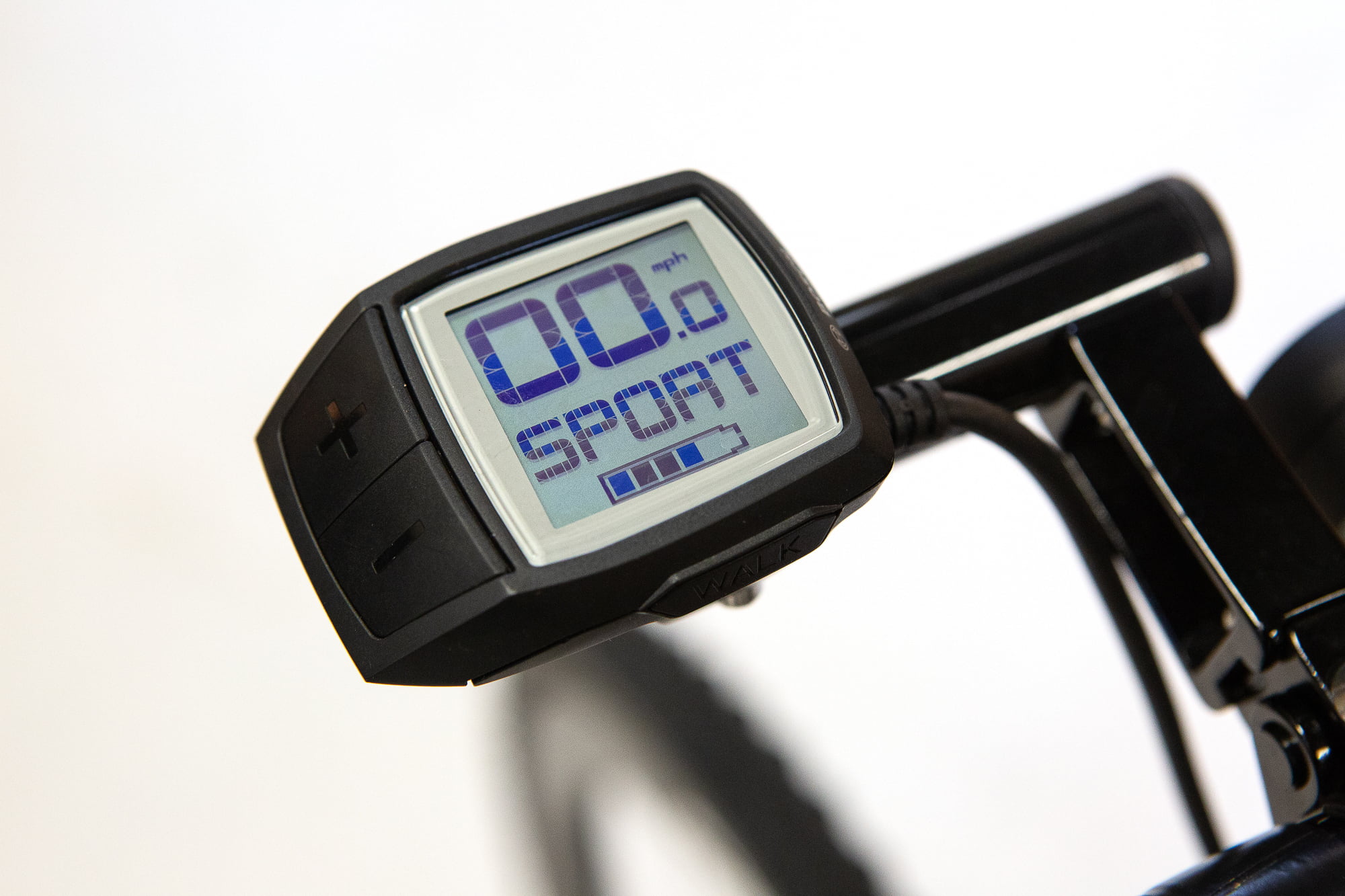

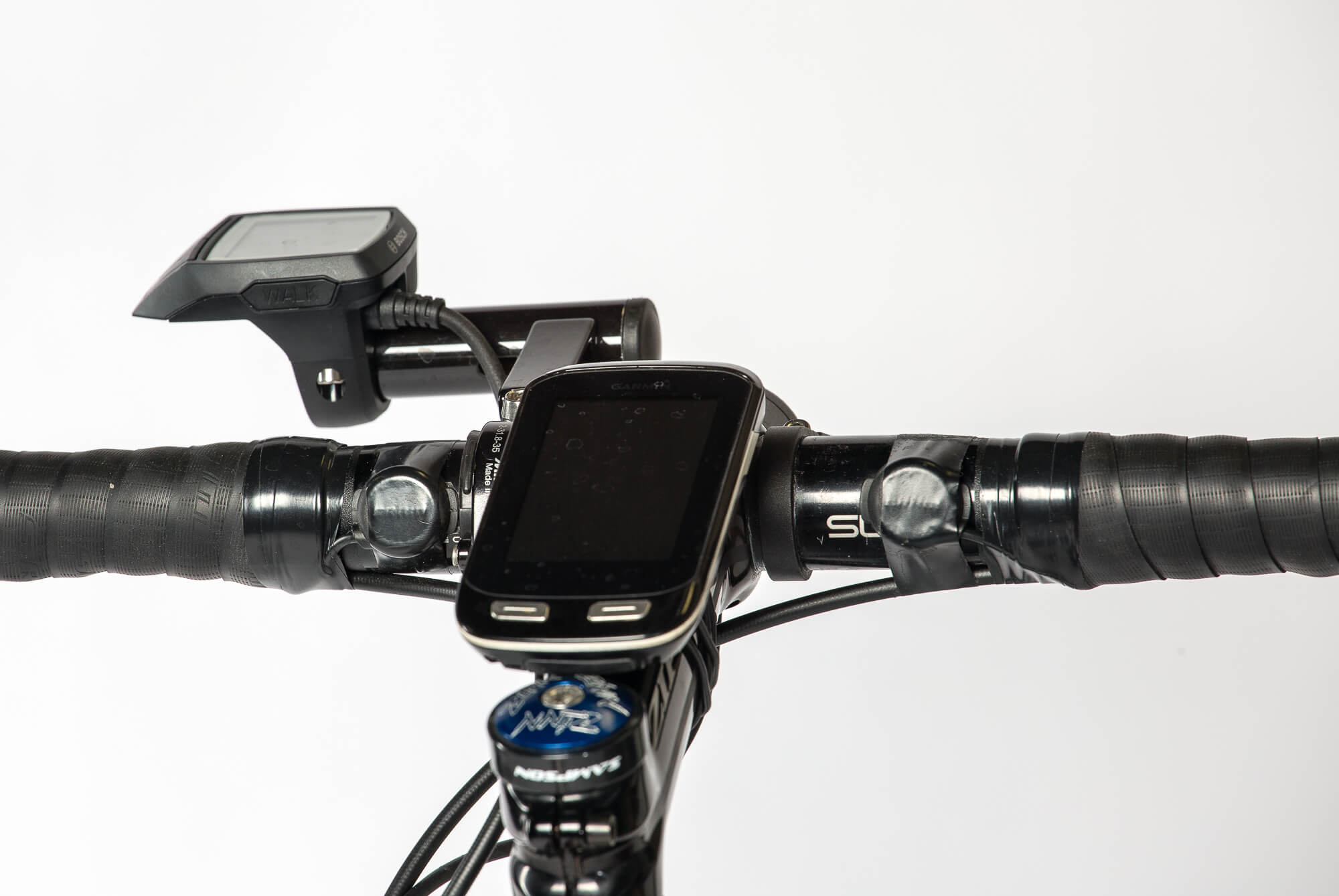

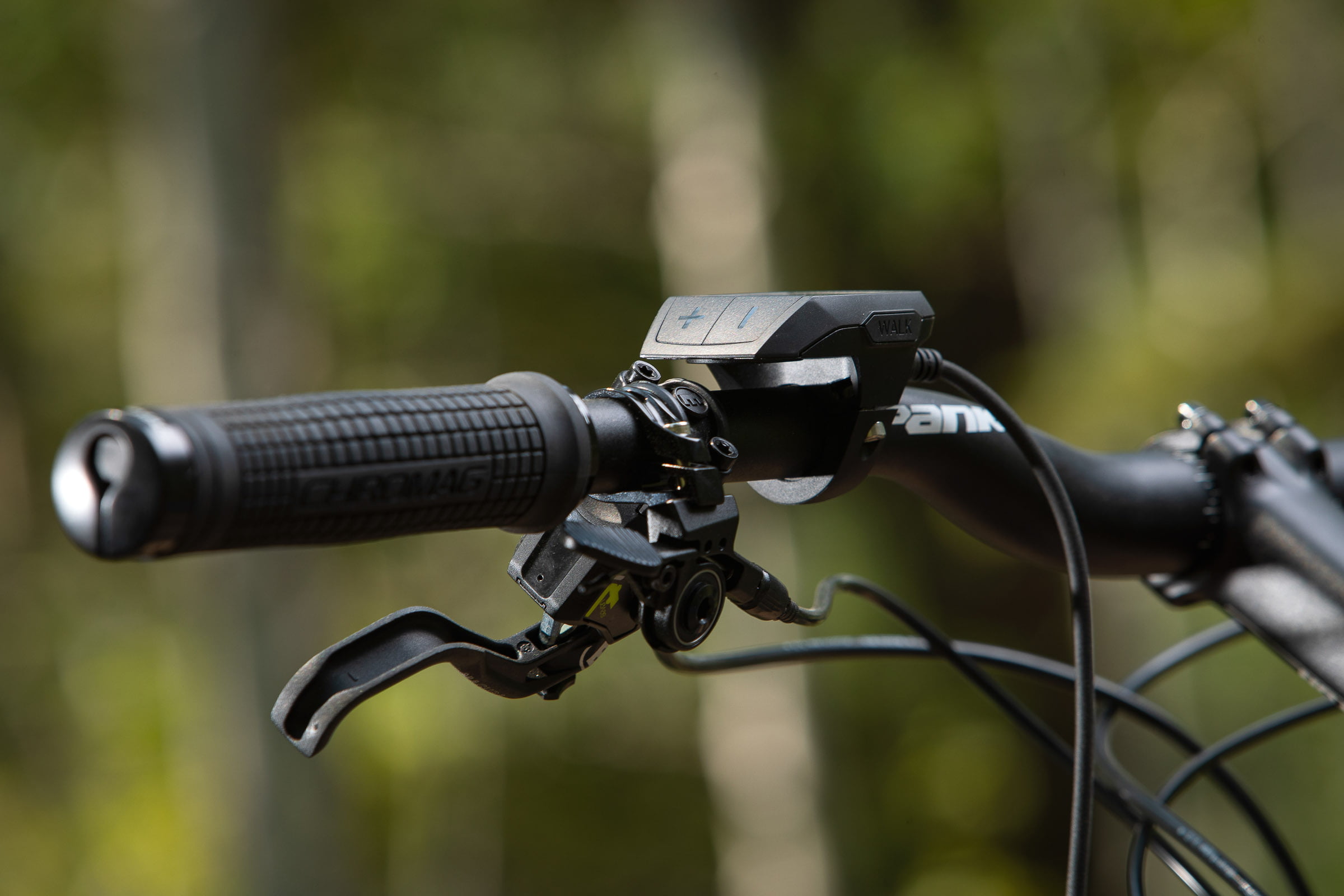

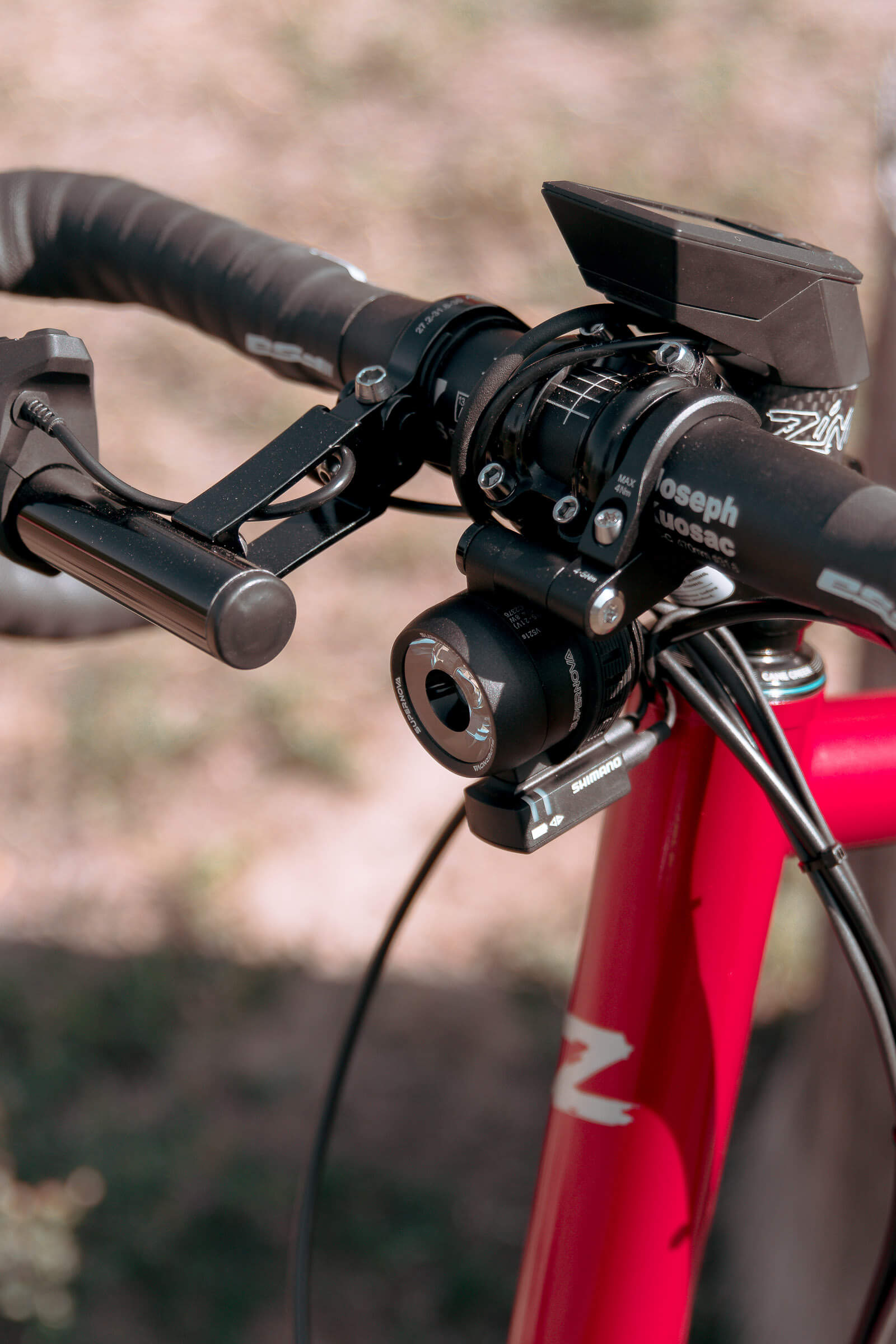

Bosch Purion Display
Charging status, speed, riding mode, range, trip distance, total distance
The display without play lighted from behind enables recognising all riding data.
The optional service interval display reminds you about fixing the next service appointment for your eBike with the specialist dealer.
The specialist dealer can monitor the status of your Bosch eBike System via the micro USB interface.
Focus on the essentials
Five support steps, safe operation with thumbs, neat handle bar.
Bike fitting included with every Zinn bike frame
No matter where you live in the world, we will work with you to make sure the fit of your Zinn bike is absolutely perfect. We offer a full service in-house bike fitting for those who can make it to Boulder, Colorado and we also have detailed measurements instructions for those who cannot make it out for an in-house fitting. We are also happy to work directly with a bike fitter in your area, and we offer upgraded 3D bike fittings with Dr. Andy Pruitt at the Boulder RETUL Center.
Zinn Cycles Design Philosophy
Lennard Zinn has been designing and building great bikes of all types for big and tall cyclists, small women, cyclists with injuries, and everyone else since 1982. He is one of the few bike designers in the world that has dedicated his career to improving the performance and durability of big and tall bikes and bikes for women. He has also spent a great deal of time working with Dr. Andy Pruitt to design bikes for cyclists who have suffered from injuries, reduced mobility, knee problems, back problems, neck problems, and many other ailments. There are many more factors to building a big and tall bike than most people understand. It is not as simple as just scaling up a “normal” sized frame and calling it good. When you do that, several things happen to the bike. First, the stretched-out tubes become less stiff, which results in high speed frame shimmy. This is a scary by-product of a poorly designed bike. Second, the added material makes the bike heavier, especially if the builder tries to solve problem number one with just using thicker tubes. Third, without a fork with a long enough steering tube, the handlebars will be far too low for the tall cyclist, causing discomfort in the back, neck, wrists, and arms. Fourth, building a bike for a tall or small rider with average length cranks will make the rider feel unnatural while pedaling. Proportional crank length is at the heart of all of our custom bike designs. We offer cranks from 130mm all the way up to 220mm, so we can properly fit any person in the world, no matter their size. Lennard has developed great frame design concepts to address and solve all of these issues and more. A bike designed by Lennard Zinn will be stiff and strong, while remaining lightweight. It will not shimmy at high speeds, and all of the components will be proportional to the rider. Fit, performance, comfort, and durability will all be superior on a Zinn bike than a bike from any other designer out there. We guarantee it.
Make it a Travel Bike
Add S&S Couplers for easy travel
If you want your bike to be a travel bike, we can add S&S couplings to your frame. If you choose titanium or steel for your frame material, couplers can easily be built into the frame, making it an incredible travel bike that breaks down into sections and fits into an airline regulation travel case. We can do two or four couplers depending on the size of your frame. Bigger bikes need four couplers and smaller bikes can get away with just two. S&S Couplers do not reduce the strength of the frame one bit, in fact, it’s quite the opposite. The Couplings are so well made that they become the strongest point in the tube! Not all bikes can fit completely into an airline regulation case. Bikes like 29ers, Touring bikes with racks and fenders, and e-bikes may or may not fit completely in the case and will require a secondary bag or case to carry some of the parts. Contact us about building your bike with couplers.
Order a bike now
Excited about your new bike? While you are welcome to come to our location for a full fitting, it is not necessary. You can easily follow the instructions for submitting your own measurements by clicking the measurements button below. To start the order process, please click the button below to pay a deposit. We will contact you with further instructions. Once we have your measurements and deposit, we will create a CAD drawing of your bike for you to review.
