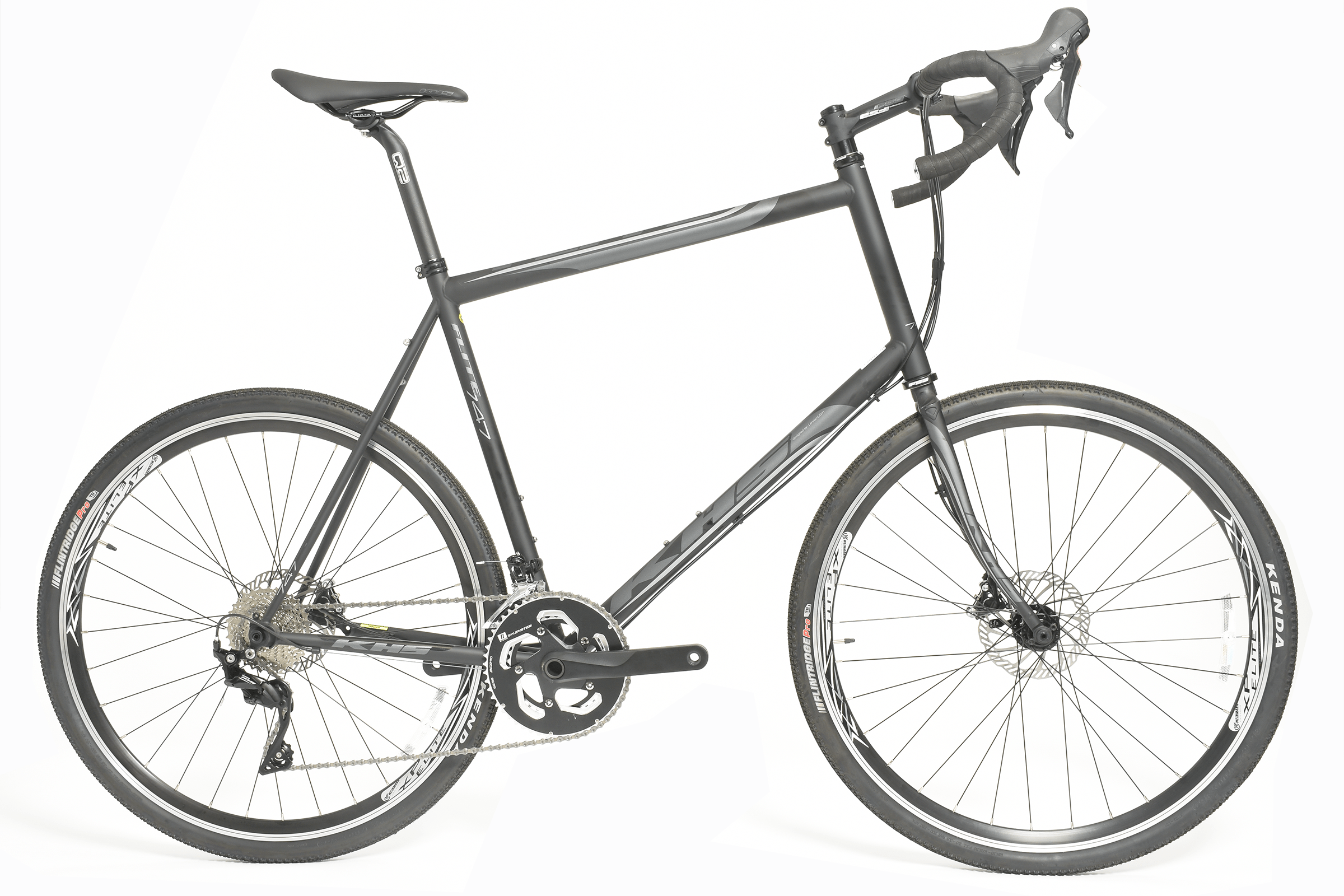

KHS Flite 747 Disc- XXL Bike
XXXL Bike for tall guys
$2599.00
Available Sizes: 2XL/3XL
Now this is the bike for tall guys. An XXL bike is hard to find, and this one is truly designed for big and tall people. The KHS Flite 747 – XXL bike is a size 65cm effectively and the XXXL bike is 67cm effectively. Actual Seat tube lengths are 64cm and 66cm. Effective seat tube lengths are due to the higher bottom bracket used for longer cranks. A gravel/road bike for big and tall men (and women), designed by Lennard Zinn specifically for tall guys. Between these two sizes, we can effectively fit anyone from 6’3″ to 6’10” or even taller.
The Flite 747 comes in 2xl or 3xl only and is spec’d with Shimano 105 11-Speed Shifters, hydraulic disc brakes, and Derailleurs, 200mm cranks and 46cm handlebars and with 32mm tire clearance for use with road or gravel tires. Complete bike weighs 30 lbs. for a 2xl.
*pedals sold separately
KHS Flite 747
Specifications
| Frame | Reynolds 520 D/Butted, T/T, 38.1, D/T 40.0, S/T:32.4 |
| Fork | Full Cromoly fork |
| Drivetrain | Shimano 105 R7000 |
| Brakes | Shimano 105 Hydraulic Disc brakes |
| Cranks | KHS 200mm 34/50t |
| Wheels | Weinman Elite 36 spoke disc brake |
| Tires | 700x32mm with inner tubes |
| Sizes | XXL – 65cm and XXXL – 67cm |
If you are unsure of what size you need, please submit your measurements and we will help you figure out which bike is best for you.
all measurements in milimeters
| Rider Height | Frame Size | Bike weight | *Stack/Reach | TT | Stem | HT | SO | BB Height | CS | Crank Length | HB width |
| 6’3″ – 6’7″ | XXL | 30lbs | 654/424 | 620 | 130 | 270 | 881 | 297 | 430 | 200 | 460 |
| 6’6″ – 6’9″ | 3XL | 21lbs | 691/427 | 635 | 130 | 309 | 917 | 297 | 430 | 200 | 460 |
| * Due to higher bottom bracket design for long cranks, Stack and Reach numbers can not be compared directly with other bikes that are not built for custom length cranks. | |||||||||||
Order a bike now
Excited about your new bike? You can place an order for the KHS Flite 747 by clicking the link below, or you can email or call us to discuss details or place an order via phone or email. If you don’t know which size you need, please submit your measurements using the link below and we will help figure out which bike is best for you. We are here to answer your questions, so please don’t hesitate to contact us.
